Meletrix

Boog75 Prebuilt

Boog75 Prebuilt

279.99 CAD
349.99 CAD 279.99 CAD
Sale Sold out
Shipping calculated at checkout.
Color
 More payment options

Kit Contents:

Fully Assembled Keyboard, including:

  1. Top and bottom cases
  2. HE Module(Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)
  3. The themed keycaps
  4. Tool accessories

Dual-rail structure for stability.

Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.

Extending the stem for better switch stability.

Integrated spotlight lens design, enhancing light guidance.

Every switch features a very tight housing and a very good coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!

Customize Here

20240925 Update

Instructions

Keyboard Specifications:

  • Wired
  • Gasket Mount Design
  • 75% Layout
  • PCB: 1.6mm, with Ai03 DB
  • 5° Typing angle
  • 22.14 mm front height
  • Dimension: 323.6 x 145.78 x 34.73 (mm)
  • Default plate: Alu
  • Case Material: 6063 Aluminum
  • Case Finish: Anodized+Infill (No Sparkles, No Chamfer)

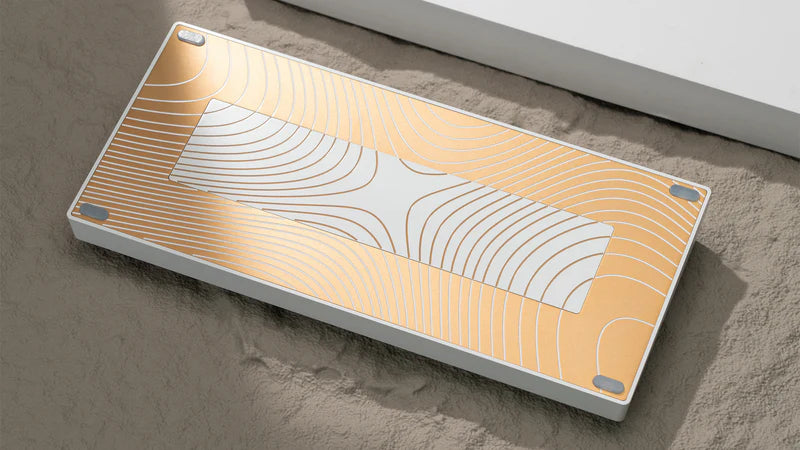

  • Backplate and External Weight: Anodized+Infill
  • Switches Type: Gateron KS37B, compatible with Gateron KS37, GATERON Magnetic FOX Switch, GATERON Dual-rail Magnetic Jade Mini E Switch
  • The Orientation of the Switches: North Facing
  • No SS Internal Weight
  • Boog 75 Wired Polling Rate: 1000hz
  • QMK or VIA Support: No, customization requires to use of our independent driver.
  • Total weight: About 3kg

Keycap Specifications:

  • Manufacturer: WS PBT
  • Keycap Material: Doubleshot PBT
  • Keycap Thickness: 1.6mm
  • Keycap Profile: Cherry
  • Keys QTY: 81 keys

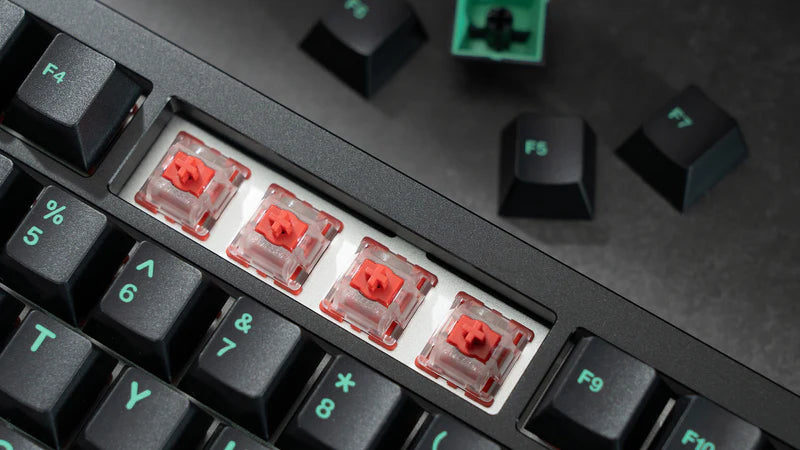

Switch Specifications:

  • Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
  • Initial Force:30±10gf.
  • Total travel:4.0±0.2mm.
  • Operation Lifetime:150,000,000 Cycles.
  • Bottom Force: 50±10gf.
  • Top Housing Material: Thermoplastic, Transparent
  • Bottom Housing Material: Thermoplastic, Red
  • Stem Material: Thermoplastic, Red
  • Spring Material: Stainless steel

We would like to clarify that our BOOG75 keyboard is only compatible with certain types of switches ( compatible with KS37). Any issues arising from the customer's independent replacement of switches fall outside the scope of our after-sales service. In such cases, customers will be responsible for covering any repair costs incurred. We appreciate your understanding in this matter.
